Half-Cell Corrosion Potential (HCP) testing indicates rebar corrosion by measuring the electrical potential difference between embedded steel reinforcement and an external reference electrode.
This potential difference reflects the electrochemical activity of the steel surface. Because corrosion is an electrochemical process, the electrical potential of embedded steel changes when it transitions from a passive state to an actively corroding state. By interpreting these potentials, engineers can estimate the likelihood that corrosion is occurring.
In concrete, steel typically remains passive due to the highly alkaline environment created by hydrated cement. This passivity results in stable, relatively high electrochemical potentials.
When chlorides from deicing salts or seawater penetrate the concrete, or when carbonation reduces alkalinity, the passive layer breaks down. Corrosion begins once the local environment at the steel surface supports anodic and cathodic reactions.
These reactions alter the electrochemical potential of the steel, making it more negative.
During HCP testing, a copper/copper sulfate reference electrode (CSE) is placed on the concrete surface, and the potential difference between the electrode and the steel is measured using a voltmeter.
Areas where steel is actively corroding typically exhibit potentials more negative than −350 mV (using CSE). According to ASTM C876 guidelines, more negative values indicate a higher likelihood of corrosion activity.
Conversely, potentials more positive than −200 mV generally indicate a low probability of active corrosion. Potentials between −200 mV and −350 mV fall into an uncertain range that requires additional analysis or complementary testing.
It is important to note that HCP testing identifies corrosion probability, not corrosion rate. This distinction means that a highly negative reading signals likely corrosion but does not quantify how fast the steel is deteriorating.
For this reason, engineers often combine HCP data with measurements of concrete resistivity or polarization resistance to evaluate both the potential and rate of corrosion.
HCP readings are often displayed as contour maps, which visually identify corrosion-prone zones across a structure. These maps help pinpoint localized problem areas such as joints, edges, or regions exposed to chlorides or moisture.
By identifying anodic regions (where corrosion initiates) and cathodic regions (where reactions are sustained), the test provides a clear picture of electrochemical conditions within the structure.
In summary, HCP indicates rebar corrosion by using potential measurements to infer the electrochemical state of embedded steel, making it an invaluable tool in structural diagnostics.

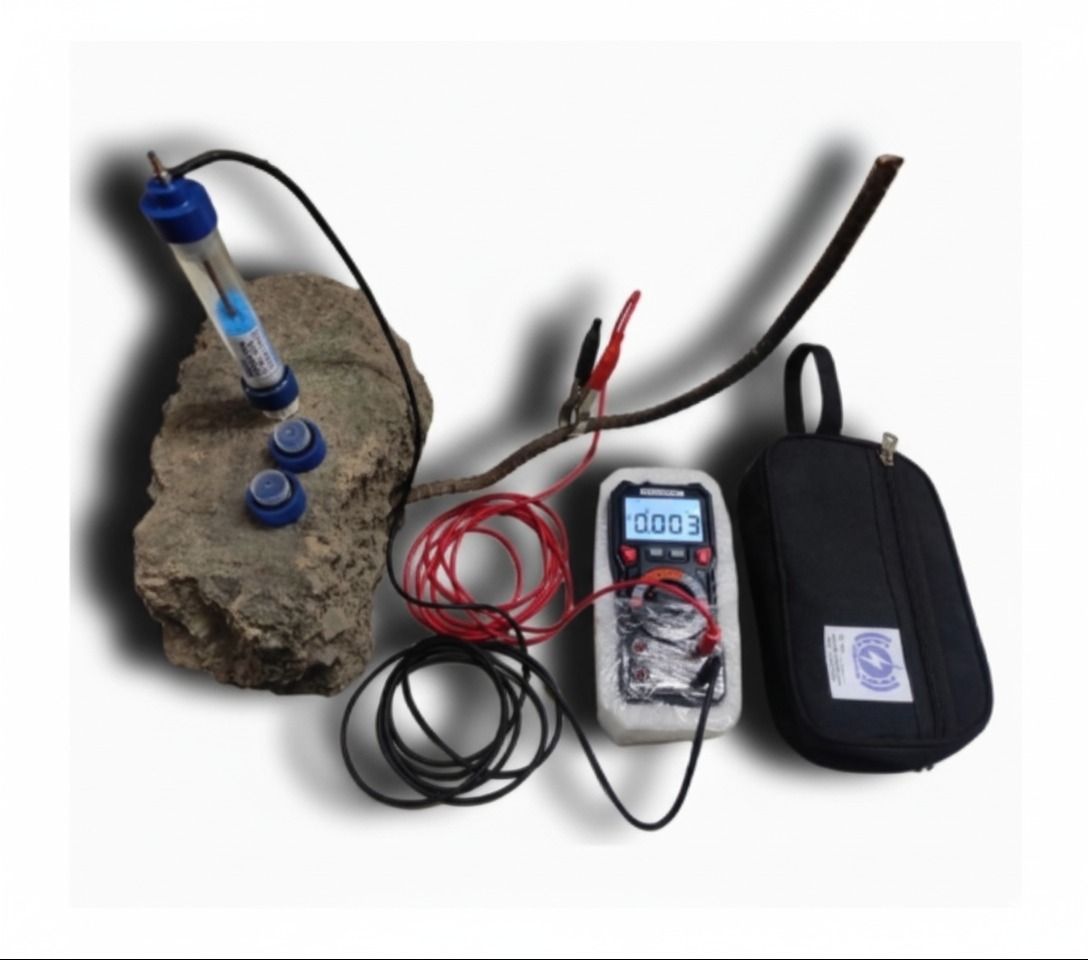

The half cell potentiometer by vedantrik technologies is a specialized equipment designed to evaluate the likelihood of the corrosion of the steel reinforcement embedded in the concrete structures, using a non-destructive electrochemical method.
The device works on half-cell potential principle, where the difference in the potential at steel reinforcement and the reference electrode indicates the probability of corrosion. The main unit includes copper/copper sulfate (Cu/CuSO₄) electrode as the reference which is placed on the exposed surface of the concrete, and connected to the multi-meter, which is in turn connected to the rebar.
The meter measures the voltage generated due to the natural electrochemical process occurring at the steel surface. More negative potential measured generally indicates higher risk of corrosion, while positive potential suggests that the steel is majorly passive and protected.
The device is fully compliant with ASTM C876 and IS 516, and allows systematic mapping of corrosion-prone areas, providing data for employing preventive measures, maintenance, and structural durability assessment.
The Half Cell Potentiometer test measures the electrical potential difference to indicate whether steel reinforcement is at risk of corrosion. In Mumbai, where marine exposure and humidity are common, this test is particularly valuable.
Vedantrik Technologies provides advanced half-cell potentiometer systems that deliver precise, reliable, and easy-to-interpret results. Widely used in research, maintenance, and quality control, these devices help engineers make informed decisions on repair and rehabilitation. By identifying corrosion activity at an early stage, the half-cell test prevents costly repairs and ensures structural longevity.
It is a preferred choice for bridge inspections, marine structures, and high-rise developments. For dependable half-cell potentiometers in Mumbai, contact Vedantrik Technologies and safeguard your structures against premature corrosion.
