Modern non-destructive testing of concrete has become more efficient with the use of the Digital Rebound Hammer, especially for on-site strength assessment in locations like Mumbai. This device is based on the well-known Schmidt principle and has been developed by Vedantrik Technologies as a compact, durable, and user-friendly instrument for quick estimation of concrete strength. It is designed in accordance with major standards such as IS 516, ASTM C805, DIN 1048, and BS 1881, ensuring reliable and consistent results across applications.
The Digital Rebound Hammer is a non-destructive testing (NDT) tool used to evaluate the surface hardness and overall quality of concrete. During testing, the hammer’s plunger is pressed against the concrete surface, causing a spring-loaded mass to impact it. The rebound of this mass is measured electronically and displayed as a digital value. This rebound value reflects the surface hardness of the concrete higher values typically indicate stronger and denser concrete, while lower values suggest weaker material.
Each instrument is carefully calibrated so that the rebound readings accurately reflect the spring force and the condition of the concrete surface. In digital versions, the impact and rebound are automatically recorded and displayed, reducing manual reading errors and improving accuracy. The compressive strength of concrete is then estimated by comparing the average rebound value with standard calibration curves provided with the device, allowing engineers to perform quick field-based quality checks.

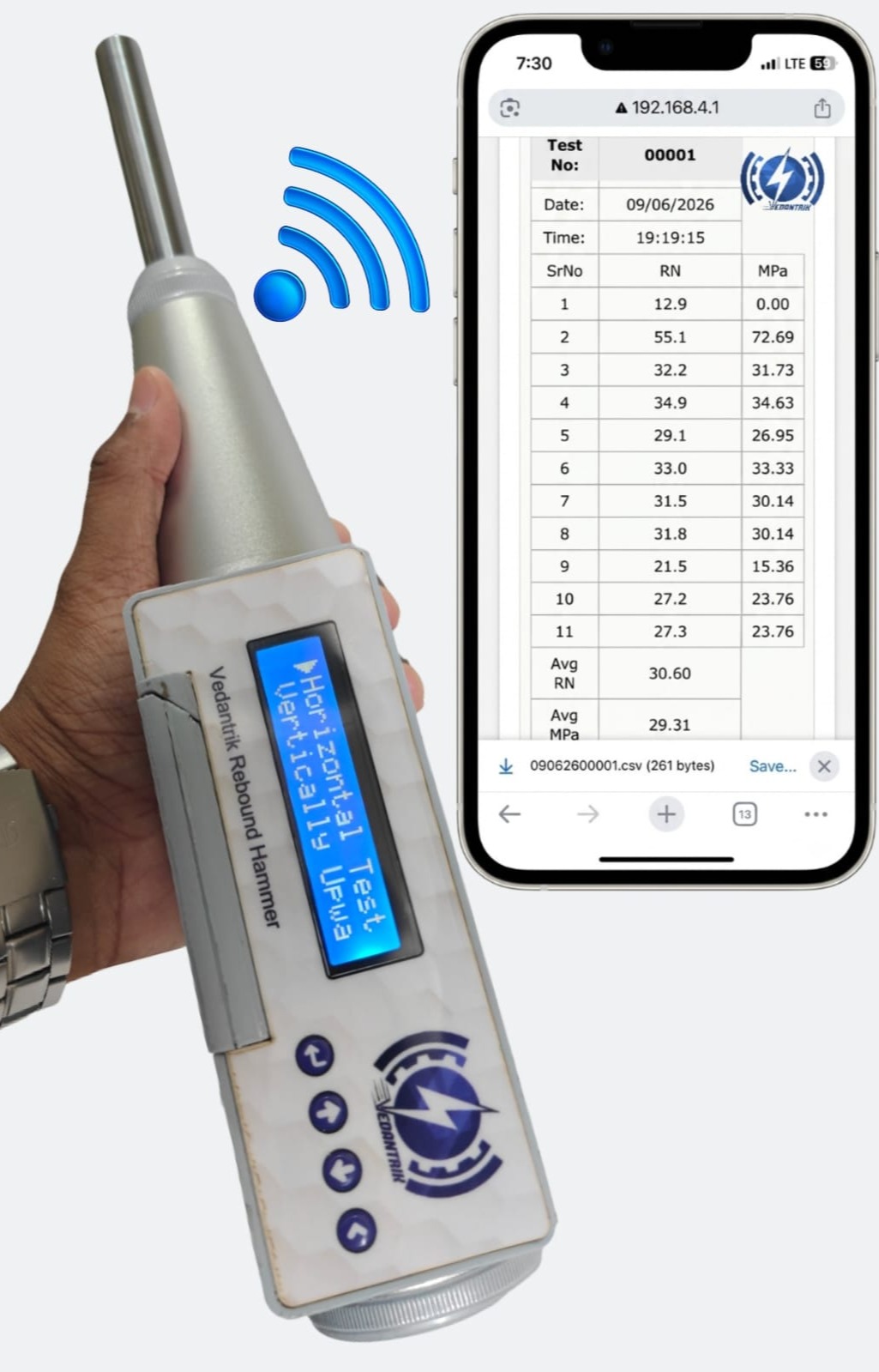

In modern digital versions, built-in sensors automatically capture rebound data, improving measurement accuracy and enabling data storage and transfer for further analysis. This enhances consistency, traceability, and documentation in quality control processes.
Rebound values are converted into compressive strength using standardized calibration charts specified in codes such as IS 516, ASTM C805, DIN 1048, and BS 1881. Strong and well-compacted concrete generally gives higher readings, while poor-quality or deteriorated concrete shows lower values.
To improve reliability, multiple readings (usually 9 to 10) are taken at different points within the same test area, and their average is considered. This helps reduce the effect of local variations. However, since the test mainly evaluates surface hardness, it can be influenced by factors such as moisture content, carbonation, and surface finish. Therefore, it is considered an indirect method and is often supplemented with other testing techniques when higher accuracy is required.
The Digital Rebound Hammer can be used in different orientations, including horizontal, vertical upward, and vertical downward positions. Since gravity can affect rebound readings, correction factors may be required depending on the testing angle. Proper calibration using a standard steel anvil is also essential to ensure consistent accuracy.
Overall, the Digital Rebound Hammer combines the traditional Schmidt rebound principle with modern digital technology, making it a fast, efficient, and reliable method for estimating concrete strength on-site while complying with international standards.
