Concrete maturity often remains a misunderstood concept within the civil engineering sector due to its abstract nature. In simple terms, concrete maturity is a Time-Temperature Factor or Index that reflects the progress of cement hydration and the resulting strength development of concrete.
It follows the principle that the strength development of the concrete is directly influenced by both Time and Temperature.
It describes the cumulative effect of both temperature and time on strength development in concrete. The main objective behind the maturity is that concrete does not gain strength based on age but rather how temperature has influenced its hydration process over time.
A key point in concrete maturity is that different concrete’s same design with same maturity will have approximately the same strength, regardless of their temperature history that produced that maturity.
The maturity principle assumes that at higher temperatures cement hydration proceeds at a faster rate, accelerating the early-age strength development, while at lower temperatures rate of hydration is much slower, which delays the strength gain.
The temperature records are integrated over time using a maturity function such as the Nurse–Saul linear equation or Arrhenius activation-energy model, that provides a quantitative value for maturity.
By integrating temperature over time, maturity index can be established, which is typically expressed in °C·hours or °C·days, that correlates with strength development.
This allows engineers to make field decisions without waiting for CTM test results that itself has its own limitations and may not reflect field conditions accurately.
The major advantage that the maturity method provides for field teams is real-time strength tracking, especially when dealing with cold-weather concreting, hot-weather concreting, temperature-controlled pours, or fast-track construction schedules.
However, the major limitation that must be taken into consideration is that maturity is concrete mix-specific. A maturity curve developed for one concrete mix cannot be used for another because changes in cement type, SCMs, admixtures, or w/c ratio alter hydration behavior.

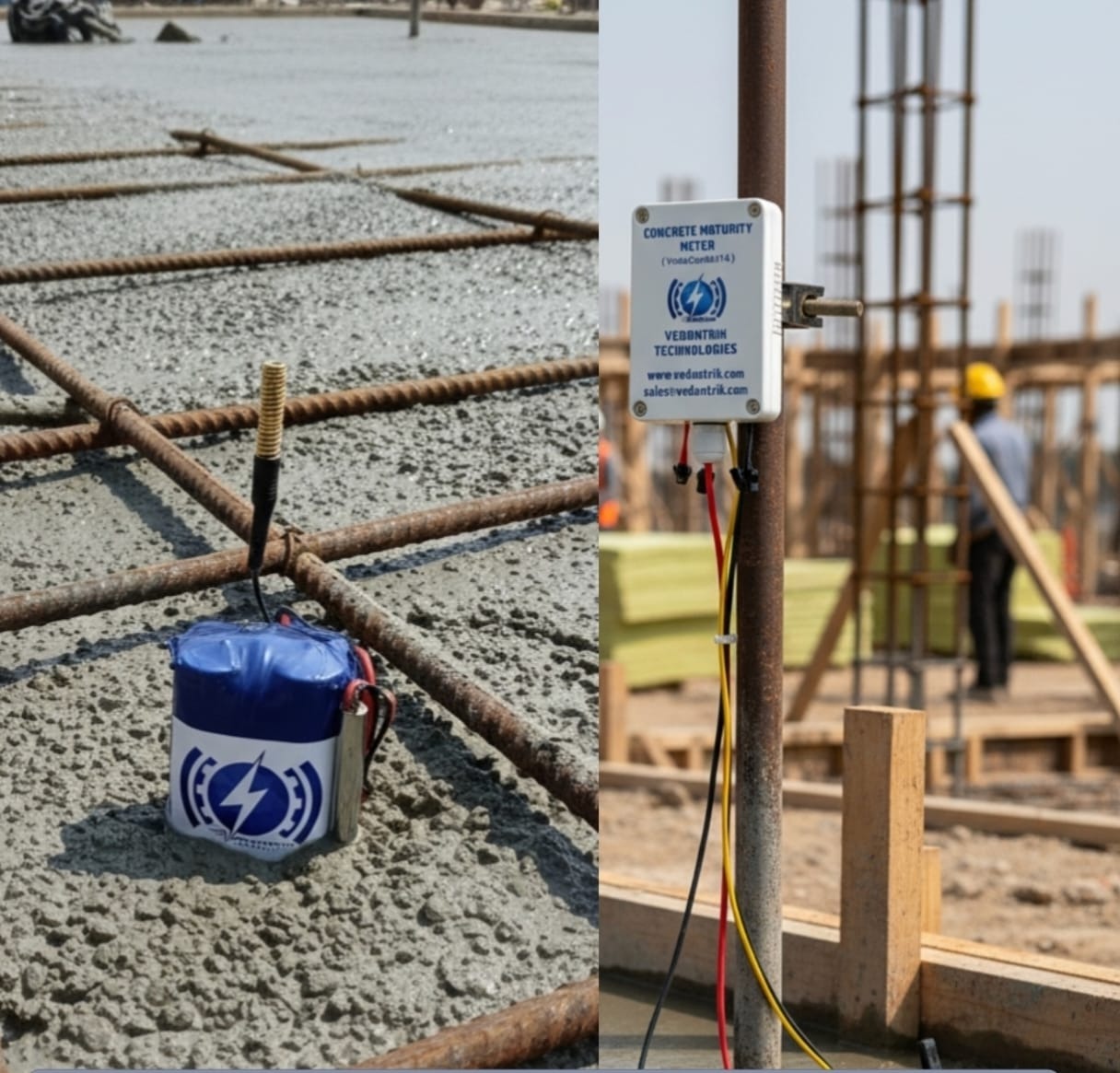

Concrete Maturity Meter
Concrete Maturity meter is a device inserted in concrete structure while casting, to monitor the concrete maturity and strength of the actual concrete by measuring temperature variations within the concrete, the device calculates the maturity value to develop a co-relation between maturity and strength, enabling real-time strength monitoring of both precast and cast-in-place concrete and also useful for determining the correct time for foamwork or shuttering removal and to decide when to stretch the tendons in PT Slabs.
Vedantrik Technologies has developed India's first Wireless type Concrete Maturity meter and installed it in India's first bullet train Project at BKC.
Concrete Maturity meter is available in various models like wireless and wired type, Sacrificial and Reusable type concrete maturity meter where only the sensor will be sacrificed and the transmitter part can be reused as per the different different application, concrete maturity meter for Concrete Road and infrastructure Projects, residential project and mass concrete temperature monitoring, temperature differential and for thermal gradient monitoring is also available.
The temperature sensors are embedded into the concrete at the construction site to measure temperature continuously. The maturity value is then calculated based on the recorded temperature data and correlated with the concrete strength. This correlation must be established for the specific concrete mix design As per ASTM C1074 standards and remains valid as long as the mix design does not change.
