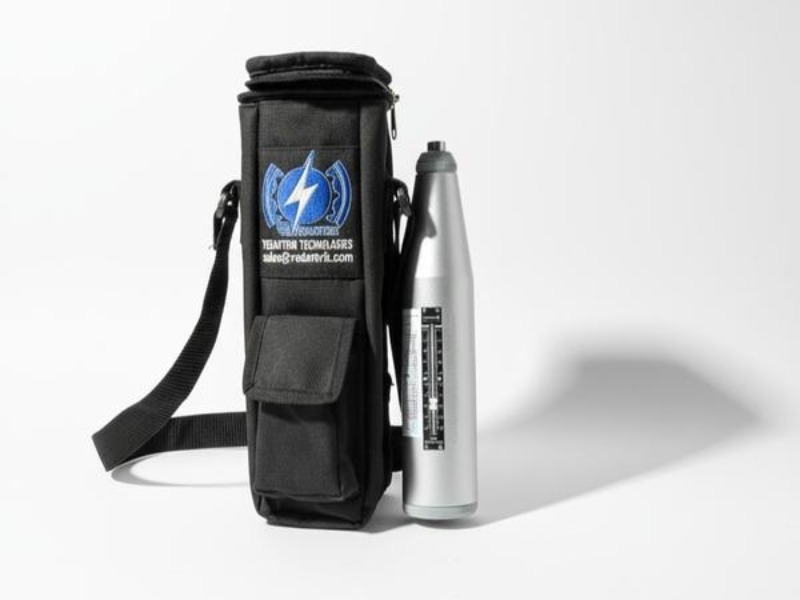

Based on the Schmidt mechanism, Vedantrik Technologies has designed a compact, durable, and easy-to-use Rebound Hammer for reliable on-site estimation of concrete strength. The instrument is manufactured in compliance with several national and international standards, including IS 516, ASTM C805, DIN 1048, and BS 1881, ensuring consistent performance and dependable results.
The Rebound Hammer is a non-destructive testing device used to assess the surface hardness and overall quality of concrete. In this test, the plunger of the hammer is pressed firmly against the concrete surface, which releases a spring-controlled mass that strikes the surface. The rebound of this mass is recorded as the rebound number, which is directly related to the surface hardness of the concrete. A higher rebound number generally indicates a harder surface and, therefore, stronger concrete.
Each hammer is properly calibrated so that the rebound number accurately reflects the stiffness of the spring mechanism and the hardness of the concrete surface. The compressive strength of concrete is then estimated by correlating the average rebound number with standard calibration curves provided with the device. This allows engineers and site professionals to quickly and non-destructively evaluate concrete strength directly at the site, supporting quality control and uniformity assessment across structures.
The Rebound Hammer test, also known as the Schmidt Hammer test, is a widely used non-destructive testing (NDT) method for evaluating the compressive strength and surface hardness of concrete. It was developed in the 1950s by Ernst Schmidt and has since become one of the most commonly used methods for in-situ strength assessment. The instrument consists of a spring-loaded mass (plunger system) that moves within a calibrated housing. When the hammer is pressed against a concrete surface, the spring mechanism releases the mass, which impacts the steel plunger in contact with the concrete. The mass then rebounds, and this rebound distance is recorded as the rebound number.
This rebound number is empirically correlated with the compressive strength of concrete using standard calibration charts or curves provided in standards such as IS 516, ASTM C805, DIN 1048, and BS 1881. The principle behind the test is based on the elastic rebound of the concrete surface, which depends on its hardness and stiffness. Harder and denser concrete produces a higher rebound, while weaker concrete results in a lower rebound value.
For accurate results, multiple readings (typically 9–10) are taken at different points within the same test area, and the average value is used for strength estimation. This reduces random errors and improves reliability. However, it is important to note that the rebound hammer primarily measures surface hardness, which can be influenced by factors such as surface condition, moisture, and carbonation, making it an indirect method that should ideally be correlated with laboratory test results.
The rebound hammer can be used in different orientations, including horizontal and vertical positions, but correction factors are required depending on the angle of testing, as gravity affects the rebound values. Proper calibration of the instrument is also essential before testing to ensure accuracy and consistency, and this is typically performed using a standard steel anvil. The final interpretation of results is carried out using guidelines provided in IS 516, ASTM C805, DIN 1048, and BS 1881, ensuring standardized evaluation of concrete strength.
