Wire length plays a very important role in mass concrete temperature monitoring. In raft foundations, pile caps, dams, and other large concrete pours, thermocouples or RTD sensors are connected to a data logger using wires. If the wire length is too long, it can affect both accuracy and site handling.
a. Increased Risk of Wire Damage
Long wires spread across the construction site are more likely to get damaged during work. Activities like concreting, reinforcement fixing, and vibration can easily cut or disturb the cables. Even small damage can lead to loss of temperature data or incorrect readings, which affects quality control decisions.
b. Data Loss and Unstable Readings
Long wire connections are more exposed to electrical noise and site disturbances. This can cause unstable temperature readings or sudden fluctuations. In some cases, temporary data loss may also happen. Since temperature monitoring is used for critical decisions like de-shuttering, accurate and stable data is very important.
c. Lead Resistance Error in RTD Sensors (Important Point)
In RTD systems, wire length directly affects accuracy due to lead resistance. When wire length increases beyond around 5 meters, the resistance of the wire starts influencing the reading. This leads to an error where the system shows a higher temperature than the actual concrete temperature. This type of error can affect thermal analysis and decision-making if not properly compensated.
d. Site Management Problems
Long wires on site create practical difficulties. They can block movement of workers, get tangled with reinforcement steel, and create safety hazards. They also make the site look untidy and difficult to manage, especially during large pours with multiple sensors.
e. Installation Difficulties
Long wire systems require careful planning, routing, and protection. This increases installation time and effort. There is also a higher chance of human error during setup. In fast-paced construction projects, this can delay monitoring readiness before concreting starts.
f. Better Option – Short Wire or Wireless Systems
To avoid these issues, modern systems use short wire connections or wireless monitoring technology. These systems reduce the risk of damage, improve accuracy, and make installation much easier.

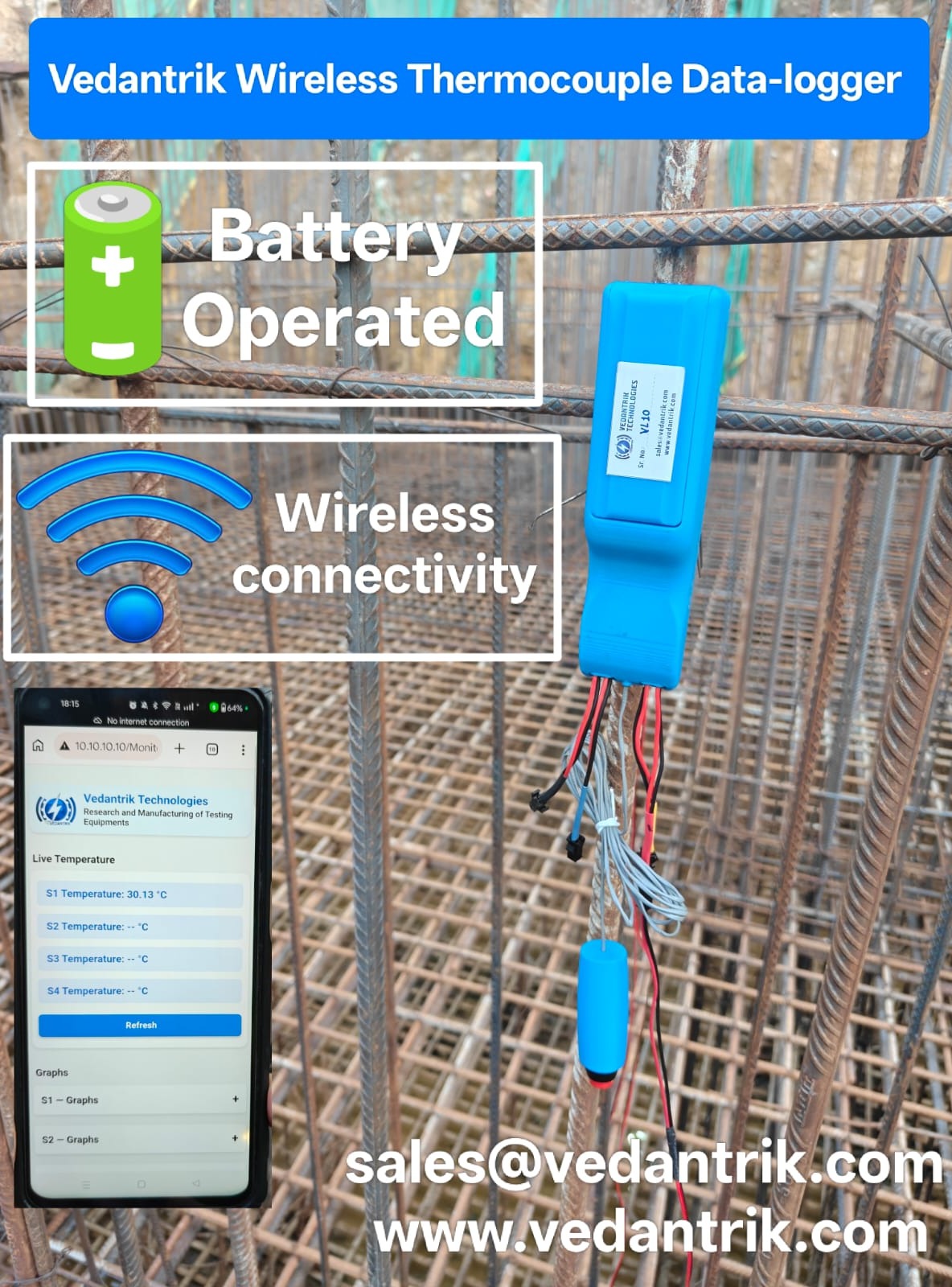

Vedantrik Technologies provides Wireless and Battery-Operated Mass Concrete Temperature Monitoring Systems where the monitoring device is placed near the sensor. This ensures accurate Top, Middle, and Bottom temperature readings, eliminates long cable runs, and provides real-time data without interruption.
