Thermocouple Sensors installation for temperature controlled concrete and Mass Concrete Temperature

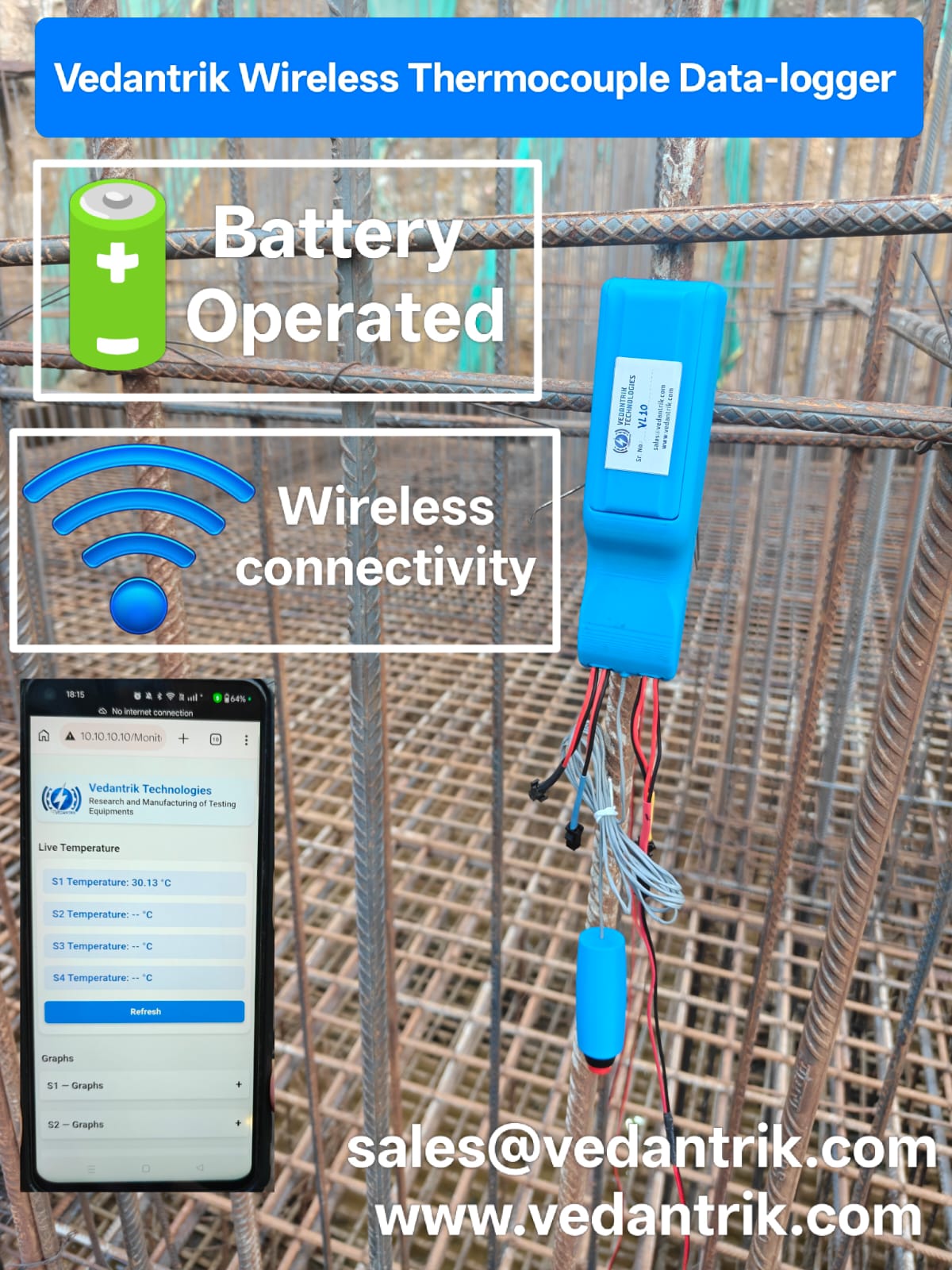

Vedantrik Wireless Thermocouple Sensors provide an advanced and reliable solution for temperature monitoring in mass concrete structures. The system is specially designed to measure the internal temperature of concrete during the hydration process, helping engineers control thermal gradients and prevent thermal cracking in large concrete elements. Mass concrete structures such as raft foundations, pile caps, piles, dams, footings, and large foundations generate significant heat during cement hydration. If the temperature difference between the concrete core and surface becomes excessive, it may lead to thermal stress and cracking. Using Vedantrik wireless thermocouple sensors, engineers can continuously monitor concrete temperature in real time without the complexity of long cables or external power supply. Thermocouple Installation in Concrete For accurate concrete temperature monitoring, thermocouple sensors are installed inside the reinforcement cage before concrete pouring. At a typical monitoring location, 3–4 thermocouple sensors are installed at different depths when the concrete thickness is around 1.8–2.0 meters. The sensors are generally positioned at: Top layer of concrete Middle or core zone Bottom layer Each sensor is securely fixed to the reinforcement bars using cable ties or binding wire to ensure stable positioning during concrete pouring and vibration. Advantages of Vedantrik Wireless Thermocouple Sensors The Vedantrik wireless monitoring system eliminates traditional wiring and simplifies temperature monitoring on construction sites. Key advantages include Completely Wireless Concrete Temperature Monitoring Battery Operated Thermocouple Sensors No Long Cable Installation Required Quick and Easy Site Installation Continuous Real-Time Concrete Temperature Monitoring Suitable for Mass Concrete Structures This system reduces installation complexity while providing accurate temperature data throughout the concrete curing period. Concrete Temperature Monitoring Duration Concrete temperature is typically monitored for 7 to 14 days after casting, depending on project specifications. The collected temperature data helps engineers evaluate: Peak hydration temperature Core vs surface temperature difference Thermal cracking risk in mass concrete Concrete maturity and strength development These measurements are critical for quality control, structural durability, and compliance with thermal control plans in infrastructure projects. Applications Vedantrik Wireless Thermocouple Sensors are widely used in: Mass Concrete Temperature Monitoring Raft Foundation Monitoring Pile and Pile Cap Monitoring Bridge Foundations Dam Construction Projects Large Industrial Foundations Why Choose Vedantrik Wireless Thermocouple Sensors Vedantrik offers a cost-effective, reliable, and easy-to-install concrete temperature monitoring system that helps contractors, consultants, and project engineers maintain proper thermal control in mass concrete construction. The wireless design eliminates cable management issues, reduces installation time, and ensures continuous temperature monitoring during the most critical curing period. Wireless thermocouple sensors Battery operated – No external power required No long cable runs Real-time temperature monitoring of concrete core Maturity & strength estimation possible Ideal for raft foundations, piles, footings and mass concrete

Wireless Mass Concrete Temperature Monitoring & Maturity Sensor – VedaLite by Vedantrik Technologies For Temperature controlled concrete and other concrete members. Mass concrete elements such as rafts of High rise buildings, dams, thick foundations, piers, piles, and hot-block castings generate significant internal heat due to the exothermic hydration of cement. If this heat is not properly monitored, thermal gradients develop between the core and surface, leading to thermal stresses, micro-cracking, reduced durability, and long-term structural risks. International standards such as ASTM C1074 (Concrete Maturity Method) explain how temperature history can be used to calculate maturity and strength development using scientific models like the Nurse–Saul and Arrhenius equations. This method allows engineers to predict real-time strength, optimize curing, and make informed decisions about formwork removal and prestressing operations. Introducing VedaLite – Wireless Concrete Temperature & Maturity Sensor VedaLite by Vedantrik Technologies (Mumbai, India) is an advanced wireless concrete temperature monitoring and maturity system designed for mass concrete, high-rise buildings, infrastructure, and precast applications worldwide. This innovative single wireless module is capable of measuring temperature at four critical locations simultaneously and also gives the Idea of thermal gradient: - Ambient temperature - Top of the concrete - Middle of the concrete - Bottom of the concrete This multi-point sensing approach ensures accurate thermal profiling of rafts, dams, foundations, piers, piles, and thick structural elements. Why Wireless Monitoring is Superior Traditional wired temperature monitoring systems face multiple challenges: - Signal errors due to long wire lengths - Wire damage during reinforcement and concreting - Data loss or inaccurate readings - Complex installation and maintenance VedaLite wireless technology eliminates these problems by: - Removing long wire runs - Preventing damage during casting - Ensuring reliable, uninterrupted data - Reducing installation time and labour costs Economical Single-Module Multi-Point Monitoring Unlike conventional systems that require multiple sensors and cables, VedaLite uses a single compact module to monitor four critical points. This makes it: - More economical - Faster to deploy - Easier to manage on large sites - Ideal for high-rise rafts, dams, and infrastructure projects Battery-Operated – No 24/7 Power Dependency VedaLite operates on a long-lasting battery for up to 60 days, which: - Eliminates the need for continuous power supply - Reduces site dependency on generators - Ensures uninterrupted monitoring even in remote locations Real-Time Data, Memory & Graphical Analysis The system features: - Inbuilt memory for continuous data logging - Temperature vs. time graphical representation - Wireless connectivity with mobile phones and laptops - Real-time monitoring from anywhere on site This allows engineers to: - Track temperature rise and fall - Control thermal gradients - Prevent cracking - Make informed construction decisions Sacrificial and Reusable System Options Vedantrik offers flexible solutions: - Low-cost sacrificial wirless Concrete temperature multi-point sensing modules for single-use projects (mostly prefferd as No huge investment or high upfront cost involved) - Reusable transmitter modules where only the sensors are sacrificial and transmitter is Re-Usable with extra cost. This provides cost-effective solutions for both large infrastructure and repetitive construction projects. Maturity & Strength Monitoring for Structural Concrete When used in: - Columns - Beams - Slabs - Precast elements - In-situ structures - PT slabs The same module can provide: - Concrete maturity values - Real-time strength estimation - Reduced dependence on cube testing - Accurate formwork removal timing - Safer prestressing operations As per ASTM C1074, a maturity-strength correlation is established for the specific mix design, enabling reliable strength predictions from day one. Applications - High-rise raft foundations - Mass concrete structures - Dams and spillways - Bridge piers and pile caps - Deep foundations and piles - Hot-weather concrete - Precast plants - PT slabs and structural elements Why Choose Vedantrik Technologies - Wireless, cable-free monitoring - Economical multi-point sensing - Up to 60-day battery operation - Real-time mobile and laptop connectivity - Inbuilt data memory and graphs - Sacrificial and reusable options - Suitable for mass and structural concrete - Developed and deployed in major infrastructure projects Vedantrik Technologies – Mumbai, India Delivering advanced wireless concrete monitoring solutions for projects across India and worldwide.

Curing Tank Temperature Controller for Concrete Cubes NABL Calibrated | Single & Three Phase | Waterproof & Shockproof | Heater, Chiller & Pump Ready Vedantrik Technologies presents an advanced curing tank temperature controller designed specifically for concrete cube curing tanks used in NABL-accredited laboratories, RMC plants, construction site labs, and infrastructure projects. The system accurately maintains the standard curing temperature of 27 ± 2 °C, as prescribed by IS and NABL guidelines. Equipped with an intelligent temperature controller, SS316 waterproof immersion heaters, and built-in electrical safety protections, this solution eliminates manual temperature monitoring and ensures consistent, audit-compliant curing conditions. Each system can be supplied with an NABL-traceable calibration certificate, making it suitable for laboratory audits and quality assurance processes. Concrete Curing Tank Temperature Control System This plug-and-play curing tank controller manages heating during winter and cooling during summer, ensuring uninterrupted and uniform curing of concrete test specimens. The controller supports both single phase and three phase power supplies, allowing it to work seamlessly with different tank sizes and heater configurations without any modification. Ideal Applications Concrete cube curing tanks NABL civil engineering laboratories Construction site testing laboratories RMC plants and QA/QC departments Infrastructure and government projects Technical Specifications – Curing Tank Controller Power Supply: Single Phase / Three Phase AC, 230 V Maximum Current Capacity: 32 Amps Temperature Set Point: 27 ± 2 °C Temperature Accuracy: ±1 °C Controller Power Cord Length: 2 meters Temperature Sensor Cable Length: 5 meters Plug & Play Connections Heater connection Chiller connection Water circulation pump connection Temperature sensor connection No skilled installation required. Key Features of Curing Tank Temperature Controller Compatible with single phase and three phase heaters Dedicated socket for chiller (summer curing) Dedicated socket for circulation pump Built-in short circuit and over-current protection Integrated MCB and RCCB for complete electrical safety Rugged design suitable for laboratory and onsite conditions Smart Heating & Cooling Logic (Energy Efficient) Heating Control – Winter Operation Heater switches OFF above 27 °C Heater switches ON below 25 °C Prevents overheating and reduces power consumption Chiller Control – Summer Operation Chiller switches ON above 29 °C Chiller switches OFF below 25 °C Maintains curing temperature as per NABL and IS standards Heater Selection Based on Curing Tank Volume Below 2000 liters: Single phase heater recommended Above 2000 liters: Three phase heater recommended The controller supports both heater types without any modification. Electrical Load Capacity of Controller Three Phase Heater Load Heater Rating: 4 kW per unit Minimum Load: 1 × 4 kW Maximum Load: 4 × 4 kW (Total 16 kW) Single Phase Heater Load Heater Rating: Up to 2 kW per unit Minimum Load: 1 heater Maximum Load: 3 heaters (Total 6 kW) Note: Single phase heaters draw higher current; therefore, lower total power is recommended. For large curing tanks, three phase heaters provide better efficiency and stability. SS316 Waterproof & Shockproof Immersion Heaters Three Phase Immersion Heater Power Rating: 4 kW Cable Length: 5 meters Cable Type: 5-core Heater Material: SS316 Protection: Waterproof & shockproof Single Phase Immersion Heater Power Rating: 2 kW Cable Length: 5 meters Cable Type: 3-core Heater Material: SS316 Protection: Waterproof & shockproof Recommended Heater Configuration for Curing Tanks Single Phase System (Small & Medium Tanks) 2000 liters: 1 × 2 kW heater 4000 liters: 2 × 2 kW heaters 6000 liters: 3 × 2 kW heaters Maintains 27 ± 2 °C curing temperature. Three Phase System (Large Tanks) Up to 2500 liters: 1 × 4 kW heater Up to 5000 liters: 2 × 4 kW heaters (8 kW) Up to 7500 liters: 3 × 4 kW heaters (12 kW) Up to 10,000 liters: 4 × 4 kW heaters (16 kW) Best Practices for Uniform Concrete Curing Interconnect multiple curing tanks using a water circulation pump For identical tanks in the same environment, one temperature sensor is sufficient For different tank sizes, place the sensor in the largest tank Use multiple controllers for independent temperature control Multichannel curing tank controller available for economical multi-tank operation NABL Compliance & Custom Solutions NABL-traceable temperature calibration certificate available Multichannel and customized curing tank controllers Designed for NABL labs, RMC plants, infrastructure projects, and site laboratories Contact for Pricing & Technical Support 📞 8452062580 📧 sales@vedantrik.com Topic covered above Curing tank temperature controller Concrete cube curing tank controller NABL curing tank temperature controller Concrete curing tank heater SS316 immersion heater for curing tank Single phase curing tank heater Three phase curing tank heater Concrete laboratory curing equipment Curing tank temperature control system
